Stator Electric Scooter


RECOGNITION



Design balances aesthetics, usability, engineering, manufacturing, safety, environmental impact, and story coming together in a great product. Nathan Allen designed Stator as a simple, energy-efficient, environmentally friendly vehicle used to travel short distances. The self-balancing design lets riders simply step on and ride away.



SPARK AWARDS 2015 - Concept 2016 - Bronze

SPARK AWARDS
2015 - Concept
2016 - Bronze

MICHELIN CHALLENGE DESIGN 2015 winner

MICHELIN CHALLENGE DESIGN
2015 winner

USA TODAY  Article

USA TODAY
Article

WALL STREET JOURNAL Article

WALL STREET JOURNAL
Article

CORE 77 Student Runner Up Transportation Award

CORE 77
Student Runner Up
Transportation Award



Intro


Intro



Stator S


Stator S




"Elemental, yet clearly well prototyped and tested. Best of all, it looks fun!"

— Core 77 Jury



Stator E


Stator E


FEATURES

Rear Wheel Direct Drive 3-Phase Brushless DC | Max Power : 1,000 W

Rear Wheel Direct Drive 3-Phase Brushless DC | Max Power : 1,000 W

Key lock, power, throttle, horn, brake

Key lock, power, throttle, horn, brake

Stator's handlebar folds flat for storage and transport

Stator's handlebar folds flat for storage and transport


Specs


Specs


VIDEOS

Stator Ride

Building Stator Prototypes


SPECIFICATIONS

Max Speed
25 mph [40 km/h]

Max Range
20 miles per charge [32 km]

Motor
Direct Drive 3-Phase Brush-less DC
[Rear Wheel]

Controller
3-Phase Brush-less DC Controller

Max Power
1,000 W

Battery Pack
10Ah [10 miles]
20 Ah [20 miles]

Cell Type
20 miles per charge [32km]

Nominal Battery Voltage
48v



Charge Time
4 hours [standard charger]
1.2 hours [fast charger optional]

Frame Material
4130 chromoly tubing

Folding Front Bar
Quick Release

Curb Weight
90 lbs [40.8 kg]

Carrying Capacity
250 lbs [118 kg]

Size
58” Long / 20” Wide / 43” Tall [Bar up]
17” Tall [Bar Down]

Turn Radius
94” R on outside

Warranty
1 Year Battery and Drive Unit
1 Year Material and Workmanship




Standard on Stator E & S

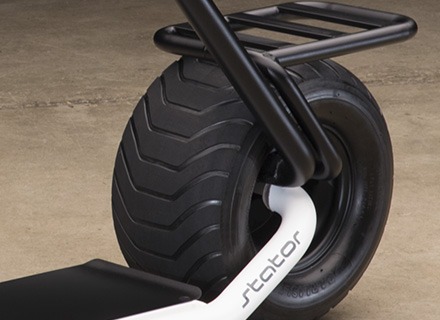

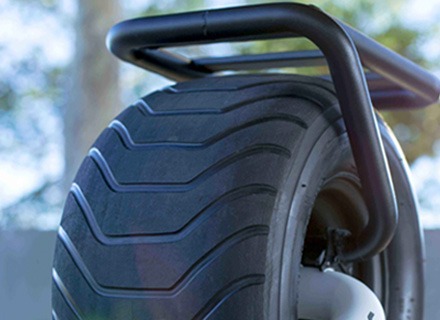

  • Large tires protect the motor and steering
  • A wide ride surface that easily glides over rough surface, cracks, rocks,dirt, and grass
  • Simple and usable controls. A turn throttle and brake
  • Green battery power lights
  • Step on and go
  • Self balancing
  • Oversized tubing gives strength and rigidity, with the right amount of flex for natural suspension
  • Ultra tough powder coating finish
  • Bar interrogated headlight
  • Handlebar folds down for storage or transportation
  • Lockable rear wheel so the vehicle cannot be ridden when alarm is set
  • Key lock on end of the bar
  • Rear and front fenders

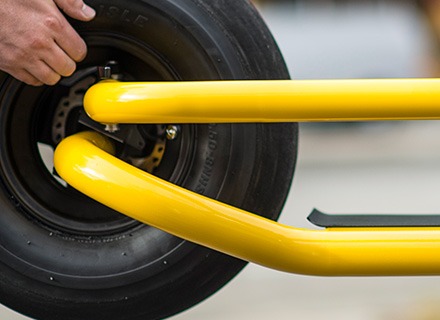

  • Front disc brake




A new era of personal mobility.

Skateboard simple, yet easy to ride and user friendly at any skill level. With RFID keyless start-up, simply step on and drive away.

Stator is a self balancing electric vehicle designed to simplify personal transportation. High output lithium batteries power an efficient 1000W geared motor for extreme off-the-line torque, and speeds up to 25 mph with a 20-mile range. Rear wheel regenerative braking is paired with a front-wheel hydraulic disc brake.

Stator may be ridden stripped down or customized with components like seat, front/rear utility racks, headlight, brake light, phone holder/charger and custom rack bags. A quick-folding handlebar gives the scooter pack-ability for quick storage and transport.

Stator construction balances cost, function, and longevity. Large tires house and protect the mechanical components, while electronics are safely housed within the steel base. The batteries are custom designed high-output, efficient 18650 cells that can withstand high recharge cycles. Over-sized parts give added strength and protection, and may be easily replaced if damaged.


Notify Me


Notify Me


Stator is preparing for a Kickstarter campaign. If you would like to receive updates, please notify us below.



Introduction


Introduction


Nathan Allen carving tire tread by hand.

Nathan Allen carving tire tread by hand.

Nathan Allen designed Stator with a passion for simple design and engineering.



Inspired by his passion for simple design and engineering, Nathan created Stator, a self-balancing electric bike. An avid skateboarder and bicyclist since childhood, he set out to build a vehicle that would provide a rider with the same unencumbered feeling of freedom and all the benefits of those modes of transportation.

Safety, easy of ride, and style were the highest priorities while developing the concept. Stator’s self-balancing function creates an easy on/off capability, even when the rider is static. He spent countless hours in his garage workspace thinking through the concept, building prototypes and painstakingly testing his inventions. With patents pending and several prototypes in circulation, his next step is to bring Stator to the market as an effortless personal vehicle for consumers 16 and above to easily navigate any environment.

As a member of the faculty at ArtCenter College of Design in Pasadena, Allen is responsible for developing the curriculum to teach students critical foundational skills that are key to their entire educational experience. He has been an instructor at the college since 2006 and a guest lecturer at Caltech on prototyping and production. His 18 years of expertise have helped guide companies such as Google [x] and Idealab develop prototypes and design products for manufacturing.

A master of identifying how to simplify design, he’s widely known and respected for his extensive knowledge of mechanics and manufacturing. A dedicated and popular teacher, he is deeply committed to mentoring the next generation of designers and engineers. He clearly knows the importance of nurturing young designers as they develop their passion and learn the vital skillset to build, utilize practical mechanics and manufacture. He earned an Associate degree in CAD/CAM Manufacturing, a BS in Product Design, and an MS in Transportation Systems and Design from ArtCenter College of Design.

Specialties: User Centered Design, Concept Design Development, Mechanical Design and Engineering, Prototyping and Design for Manufacturing, Design Education.
